EAN: 9332018090386

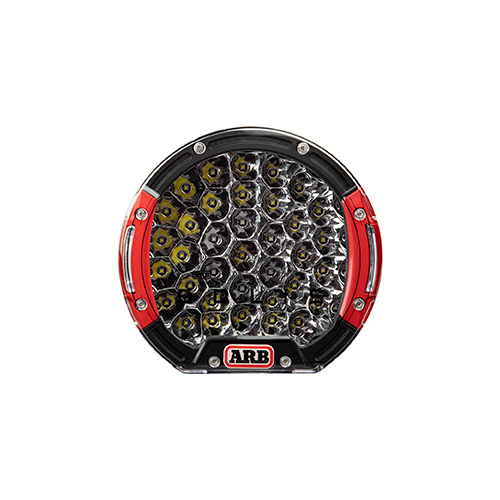

Intensity Solis 21 LED Driving Light
Features:
• 21 Osram LED (15x 4W + 6x 5W)
• 50,000+ Hour LED life span
• Input voltage 10-30VDC
• Raw Lumens 9133LM
• Colour Temperature: 5700 Kelvin
• 9° full beam width.
• Operating Temperature
-40°C to +65°C, -40°F to+149°F.
• Weight 2.73kg (6.02lbs)
• Integrated thermal management
• Pressure equalisation breather
• High pressure die-cast aluminiumbody and mount with variablepositions
• Virtually unbreakable polycarbonatelens
• UV stable moulded polycarbonate lens cover
• Durable UV stable powder coat
• High power Amphenol AT06 waterproof connector
• Over Voltage Protection to 30VDC
• Protected against RFI/EMC interference
• Dust and waterproof to IP68
• Tested to MIL810-STDG for vibration
• RoHS compliant
• CE compliant
• UNECE R10 compliant
• For Intensity Level #3 (UNECE R149 compliant)
o Power draw 36W
o Current draw 2.7 Amps @ 13.2V
o Effective Lumens 2,700LM
o Distance @ 1Lux – 426m (single light)
• For Intensity Level #5
o Power draw 82W
o Current draw 6.2 Amps @ 13.2V
o Effective Lumens 6,000LM
o Distance @ 1Lux – 620m (single light)
• Warranty 3 years – Global warranty
• Included
o 2 x Lights & 2 x Clear cover
o 2 x Mounting bracket & Mounting
Hardware kit
o UV-resistant interchangeable red or black bezels to suit
o Wiring loom with dimmer (touchpad) – PN SJBEUHARN
Light Dimensions (Single)
• 192mm (7.56”) x 190mm (7.48”) x 114mm (4.49)” (D)
ARB Intensity Solis 21 EU Spec
EAN: 9332018090386
Intensity Solis 21 LED Driving Light
Features:
• 21 Osram LED (15x 4W + 6x 5W)
• 50,000+ Hour LED life span
• Input voltage 10-30VDC
• Raw Lumens 9133LM
• Colour Temperature: 5700 Kelvin
• 9° full beam width.
• Operating Temperature
-40°C to +65°C, -40°F to+149°F.
• Weight 2.73kg (6.02lbs)
• Integrated thermal management
• Pressure equalisation breather
• High pressure die-cast aluminiumbody and mount with variablepositions
• Virtually unbreakable polycarbonatelens
• UV stable moulded polycarbonate lens cover
• Durable UV stable powder coat
• High power Amphenol AT06 waterproof connector
• Over Voltage Protection to 30VDC
• Protected against RFI/EMC interference
• Dust and waterproof to IP68
• Tested to MIL810-STDG for vibration
• RoHS compliant
• CE compliant
• UNECE R10 compliant
• For Intensity Level #3 (UNECE R149 compliant)
o Power draw 36W
o Current draw 2.7 Amps @ 13.2V
o Effective Lumens 2,700LM
o Distance @ 1Lux – 426m (single light)
• For Intensity Level #5
o Power draw 82W
o Current draw 6.2 Amps @ 13.2V
o Effective Lumens 6,000LM
o Distance @ 1Lux – 620m (single light)
• Warranty 3 years – Global warranty
• Included
o 2 x Lights & 2 x Clear cover
o 2 x Mounting bracket & Mounting
Hardware kit
o UV-resistant interchangeable red or black bezels to suit
o Wiring loom with dimmer (touchpad) – PN SJBEUHARN
Light Dimensions (Single)
• 192mm (7.56”) x 190mm (7.48”) x 114mm (4.49)” (D)
This product fits all vehicles.
