Rear step black for mounting at removable towing hook with sensor Nissan Interstar 2022-2024
EAN: 6097248070012
| Manufacturer | Model | Start Year | End Year |
|---|---|---|---|
| Nissan | Interstar | 2022 | 2024 |

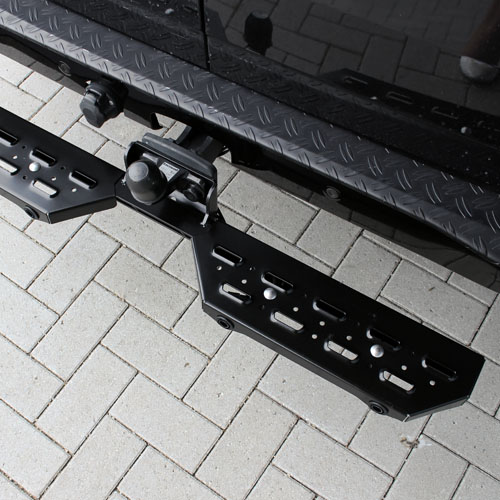

Van Step
A rear step for commercial vans serves as a stepping aid to access the loading area. This step is designed to be mounted to a tow bar (with bolts) and also comes with a relocation kit. With this kit, you can transfer existing sensors from the rear bumper to the step. Don’t have a tow bar? Then click here to view our other models.
Specifications
- Powder-coated metal frame
- Two step plates of 49x14 cm, positioned to the left and right of the tow ball
- Width: 112 cm
- Anti-slip surface
- Specifically designed for tow bar mounting (bolt-on installation)
- Delivered with relocation kit; see photo for included parts
The benefits of a rear step at a glance
- Prevents nasty slips when entering or exiting the loading area
- Reduces physical strain during manual loading and unloading, lowering the risk of injuries
- Protects the rear bumper of your van
Rear Step Installation
A rear step for a van with a tow bar can only be installed if the tow ball is mounted to a flange using two or four bolts. Installation is very simple: remove the tow ball, place the step between the ball and the flange, tighten the bolts – and you're done!
Prefer to have the rear step installed by us? Make an appointment. Our technicians will install the step while you enjoy a nice cup of coffee.
This product fits the following vehicles:
| VEHICLE DIMENSIONS |
|---|
| Interstar 2022 - 2024 (FWD) | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L1H1 | L1H2 | L2H2 | L2H3 | L3H2 | L3H3 | ||||||||||||||
| A | Wheelbase (mm) | 3182 | 3182 | 3682 | 3682 | 4332 | 4332 | ||||||||||||
| B | Length of the overhang (mm) | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 | ||||||||||||
| C | Total length (mm) | 5048 | 5048 | 5548 | 5548 | 6198 | 6198 | ||||||||||||
| D | Cargo hold length (mm) | 2583 | 2583 | 3083 | 3083 | 3733 | 3733 | ||||||||||||
| E | Cargo hold width (mm) | 1765 | 1765 | 1765 | 1765 | 1765 | 1765 | ||||||||||||
| F | Width between wheel arches (mm) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | ||||||||||||
| G | Cargo hold height (mm) | 1700 | 1894 | 1894 | 2144 | 1894 | 2144 | ||||||||||||
| H | Vehicle height (mm) | 2307 | 2500 | 2499 | 2749 | 2488 | 2744 | ||||||||||||
| Interstar 2022 - 2024 (RWD) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L3H2 | L3H3 | L3H2 TW | L3H3 TW | ||||||||||||||
| A | Wheelbase (mm) | 3682 | 3682 | 3682 | 3682 | ||||||||||||
| B | Length of the overhang (mm) | 1674 | 1674 | 1674 | 1674 | ||||||||||||
| C | Total length (mm) | 6198 | 6198 | 6198 | 6198 | ||||||||||||
| D | Cargo hold length (mm) | 3733 | 3733 | 3733 | 3733 | ||||||||||||
| E | Cargo hold width (mm) | 1765 | 1765 | 1765 | 1765 | ||||||||||||
| F | Width between wheel arches (mm) | 1380 | 1380 | 1080 | 1080 | ||||||||||||
| G | Cargo hold height (mm) | 1798 | 2048 | 1798 | 2048 | ||||||||||||
| H | Vehicle height (mm) | 2527 | 2786 | 2549 | 2815 | ||||||||||||
| Interstar 2022 - 2024 (RWD) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L4H2 | L4H3 | L4H2 TW | L4H3 TW | ||||||||||||||
| A | Wheelbase (mm) | 4332 | 4332 | 4332 | 4332 | ||||||||||||
| B | Length of the overhang (mm) | 1674 | 1674 | 1674 | 1674 | ||||||||||||
| C | Total length (mm) | 6848 | 6848 | 6848 | 6848 | ||||||||||||
| D | Cargo hold length (mm) | 4383 | 4383 | 4383 | 4383 | ||||||||||||
| E | Cargo hold width (mm) | 1765 | 1765 | 1765 | 1765 | ||||||||||||
| F | Width between wheel arches (mm) | 1380 | 1380 | 1080 | 1080 | ||||||||||||
| G | Cargo hold height (mm) | 1798 | 2048 | 1798 | 2048 | ||||||||||||
| H | Vehicle height (mm) | 2535 | 2794 | 2557 | 2808 | ||||||||||||
